NH Series Rental LED Display

Backfire Series. A rental LED display family for event, staging and professional AV project review.

Request NH Series SpecificationsRental LED Displays
Controlled working sources

Review the application before choosing a configuration

NH Series has indoor and outdoor working specification sources. P2.604 availability is confirmed, while its detailed values will be added from the formal specification sheet.

GOE NH Series rental LED display cabinet
NH Series rental LED cabinet. The mobile product visual includes authorized Red Dot and iF Design Award marks.

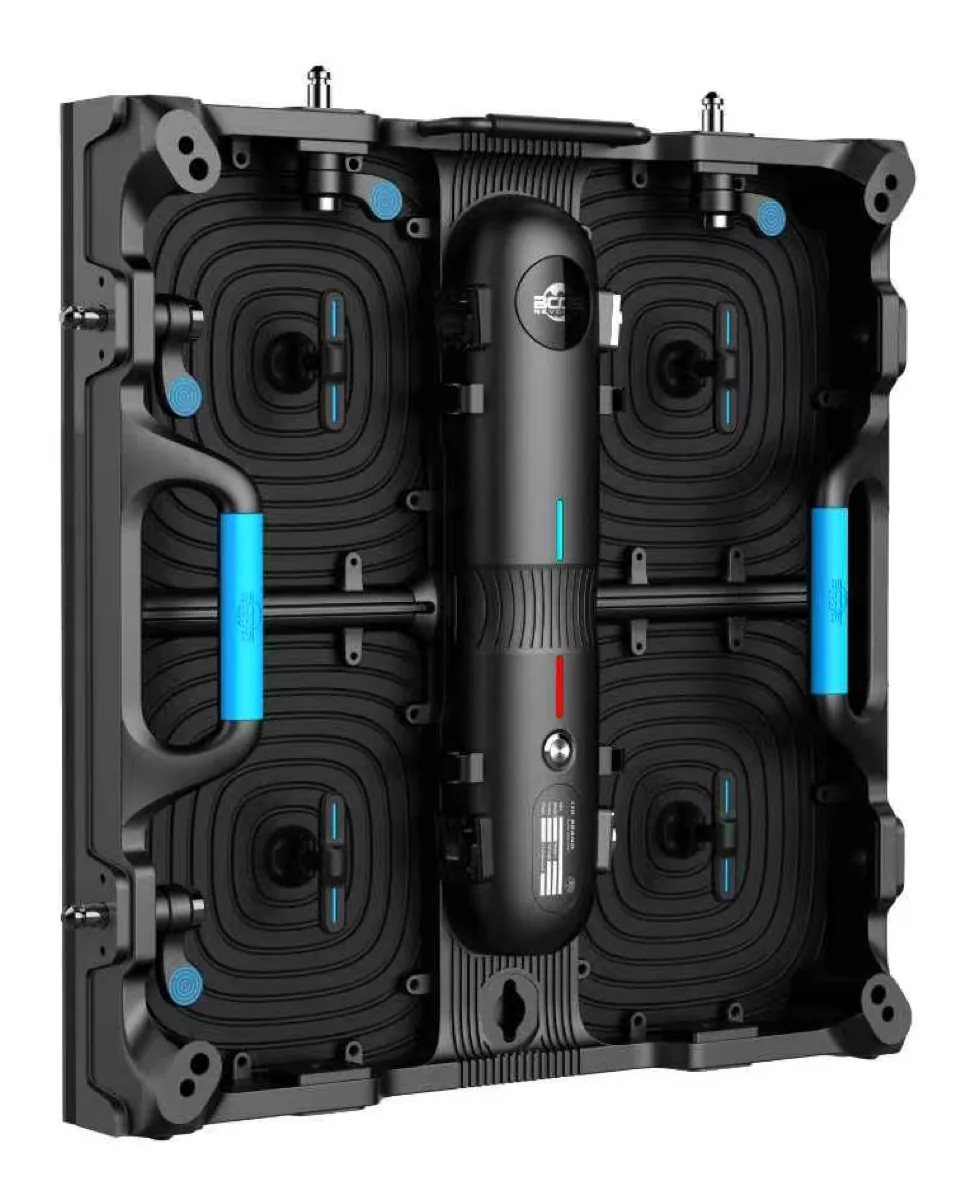

GOE NH Series rental LED cabinet structure and module design
Cabinet structureProduct structure reference for project and maintenance discussions.

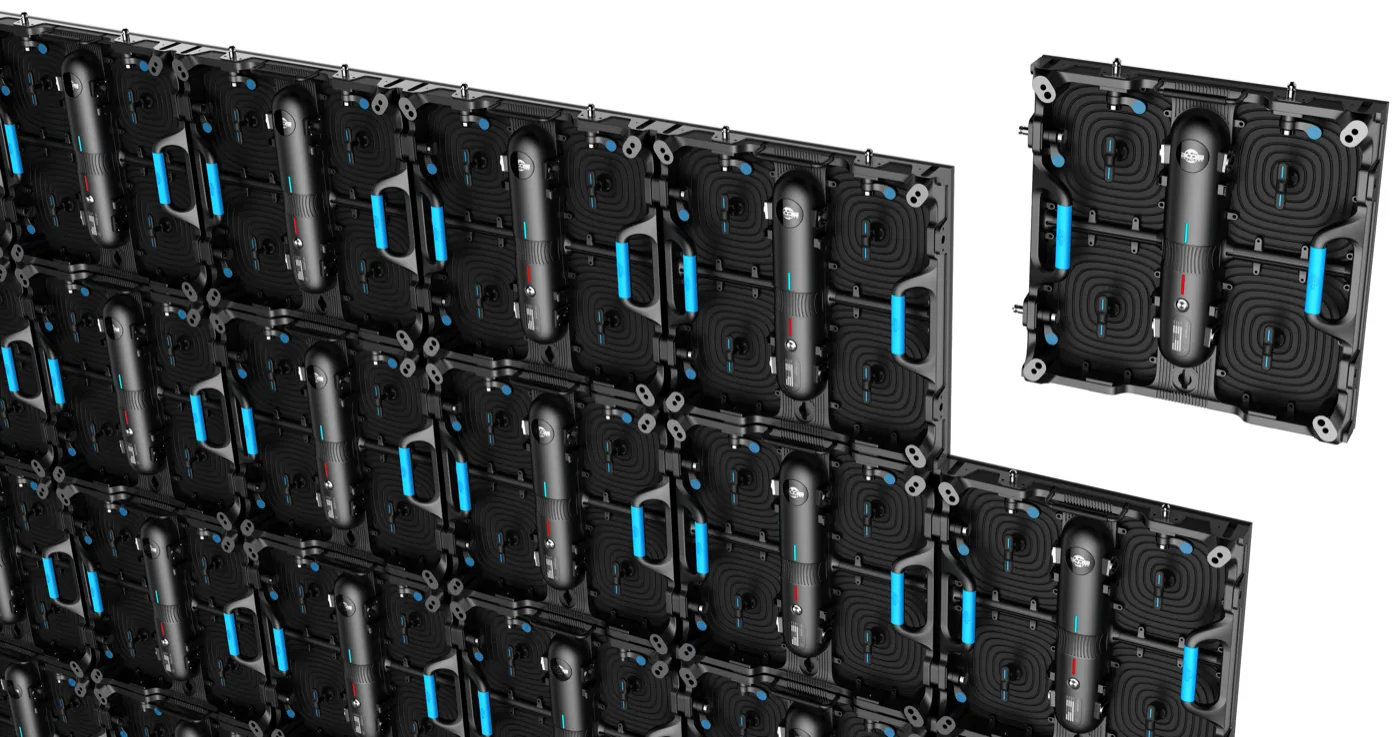

GOE NH Series rental LED display installation reference
Installation viewMulti-cabinet assembly reference for rental project planning.

P2.604 availability is confirmed for NH Series. Detailed P2.604 technical values are pending the formal specification sheet and must not be copied from P2.976 or P3.91.

Approved model data

NH Series outdoor P2.976 configurations

500 × 1000 White LED13.5 kg · 4300-4500 nits · 168 × 336
500 × 1000 Black LED13.5 kg · 2500-3000 nits · 168 × 336
500 × 500 White LED7.4 kg · 4300-4500 nits · 168 × 168
500 × 500 Black LED7.4 kg · 2500-3000 nits · 168 × 168
Shared display dataP2.976 · SMD1921 · 7680 Hz
Protection and powerIP65 · 650 W/m² max · 325 W/m² average

Pixel density: 112,896 pixels/m². Commercial terms are confirmed separately for each inquiry.

Approved model data

NH Series outdoor P3.91 configurations

500 × 1000 White LED13.5 kg · 4300-4800 nits · 128 × 256
500 × 1000 Black LED13.5 kg · 2500-3000 nits · 128 × 256
500 × 500 White LED7.4 kg · 4300-4800 nits · 128 × 128
500 × 500 Black LED7.4 kg · 2500-3000 nits · 128 × 128
Shared display dataP3.91 · 76 mm depth · SMD1921 · 7680 Hz
Protection and powerFront IP65 / Rear IP54 · 800 W/m² max · 360 W/m² average

Pixel density: 65,536 pixels/m². Commercial terms are confirmed separately for each inquiry.

Approved model data

NH Series indoor P2.976 configurations

500 × 1000 cabinet500 × 1000 × 76 mm · 12.9 kg · 168 × 336
500 × 500 cabinet500 × 500 × 76 mm · 7.1 kg · 168 × 168
Display dataP2.976 · SMD2020 · 800-1000 nits
Refresh and density7680 Hz · 112,896 pixels/m²
ProtectionFront IP65 / Rear IP54
Power800 W/m² max · 360 W/m² average

This is an indoor configuration. Front and rear protection ratings are shown separately as specified in the approved source.

Rental project planning

Structured for event, stage and AV project discussions.

Indoor and outdoor sources

Working materials support technical review across both environments.

Approved visual references

Product, structure and installation images support project review.

Application matching

Venue, viewing, setup and operating needs guide the recommendation.

Controlled parameters

Technical details remain subject to product-owner approval.

Draft only. The selected NH Series images are approved; technical parameters remain subject to confirmation.
