HG Series Outdoor Fixed LED Display
A 960 x 960 mm magnesium alloy cabinet designed for permanent outdoor LED display installations.
HG Series · 960x960K cabinet
Built for permanent outdoor installations

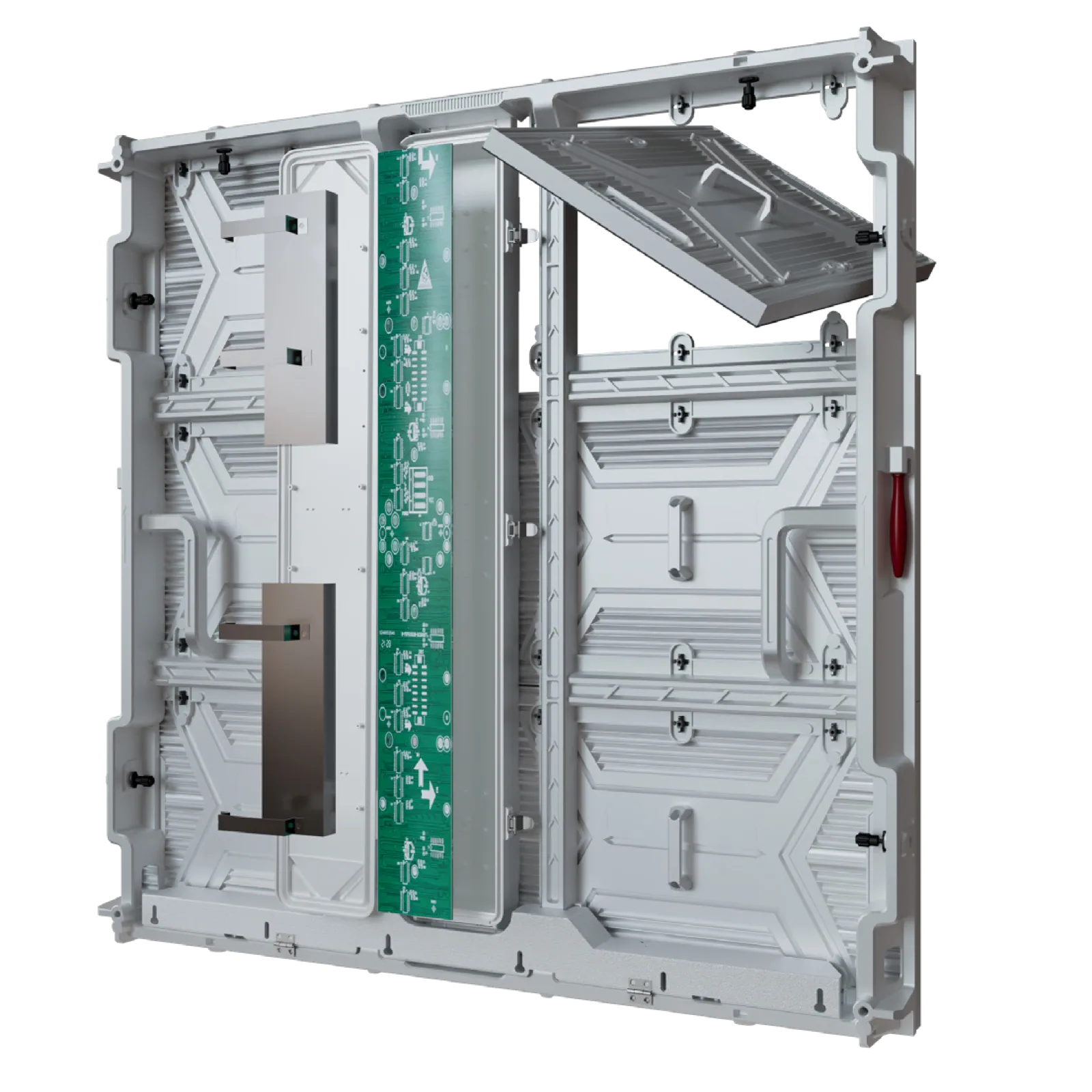

The HG Series uses a die-casting magnesium alloy cabinet with front and rear service access. Its 960 x 960 mm format supports fixed mounting, base mounting and hoisting according to the project structure.
Confirmed product data
960x960K cabinet specifications
Cabinet size960 x 960 x 70 mm
Cabinet weight10 kg*
Module size480 x 320 mm
MaterialDie-casting magnesium alloy
Pixel pitch optionsP4 / P4.44 / P5 / P5.71 / P6.67 / P8 / P10
ProtectionFront and rear IP65+
MaintenanceFront and rear

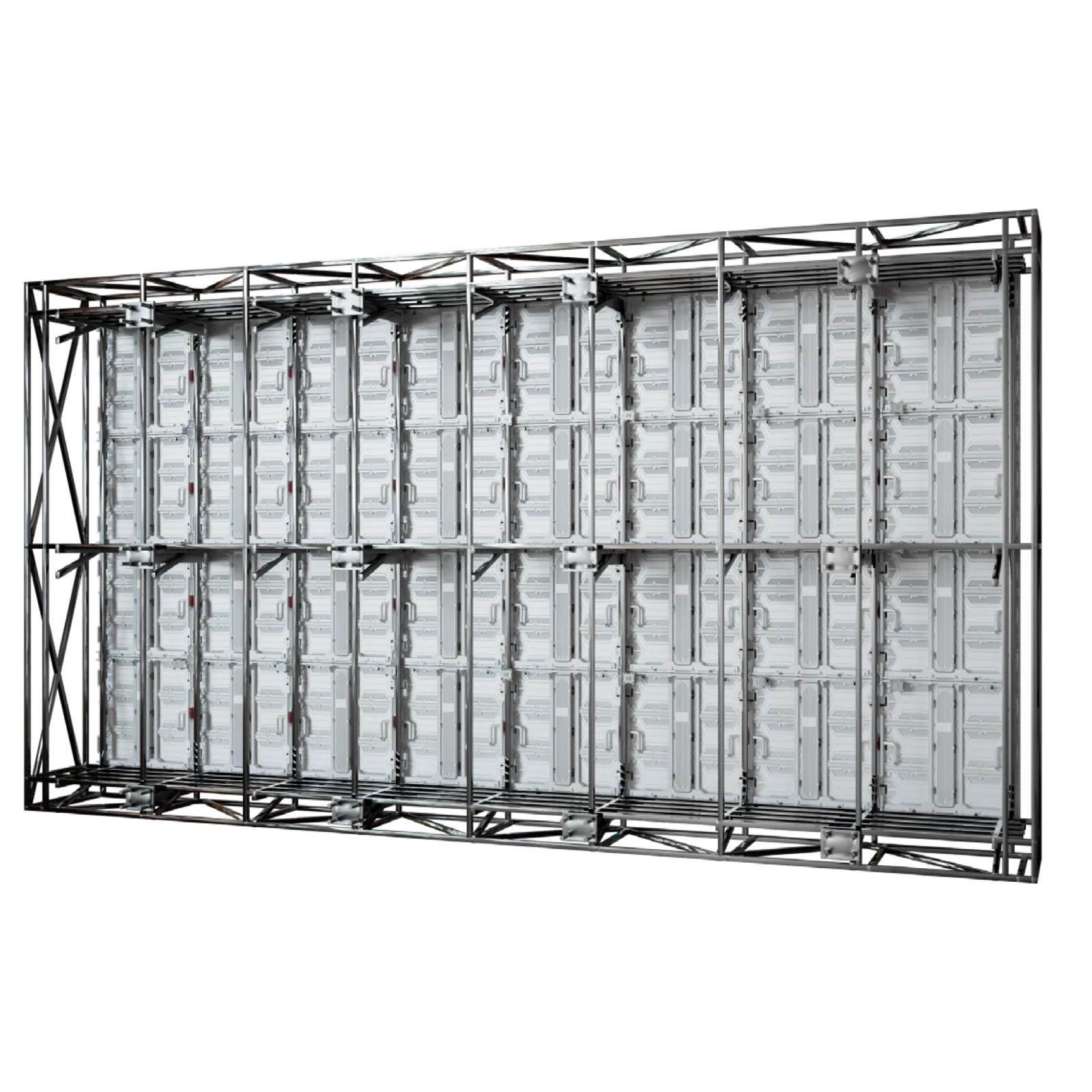

InstallationHoisting / base / fixed mounting
*Cabinet weight excludes modules and power supplies.
