JR Series Rental LED Display

Kingray Series. A rental LED display family for professional event, staging and AV project planning.

Request JR Series SpecificationsRental LED Displays
Project-led selection

Plan the display around the real rental workflow

JR Series working sources cover indoor and outdoor project review. Final product selection follows the venue, audience, installation plan and operating requirements.

GOE JR Series rental LED display cabinet
JR Series rental LED cabinet.

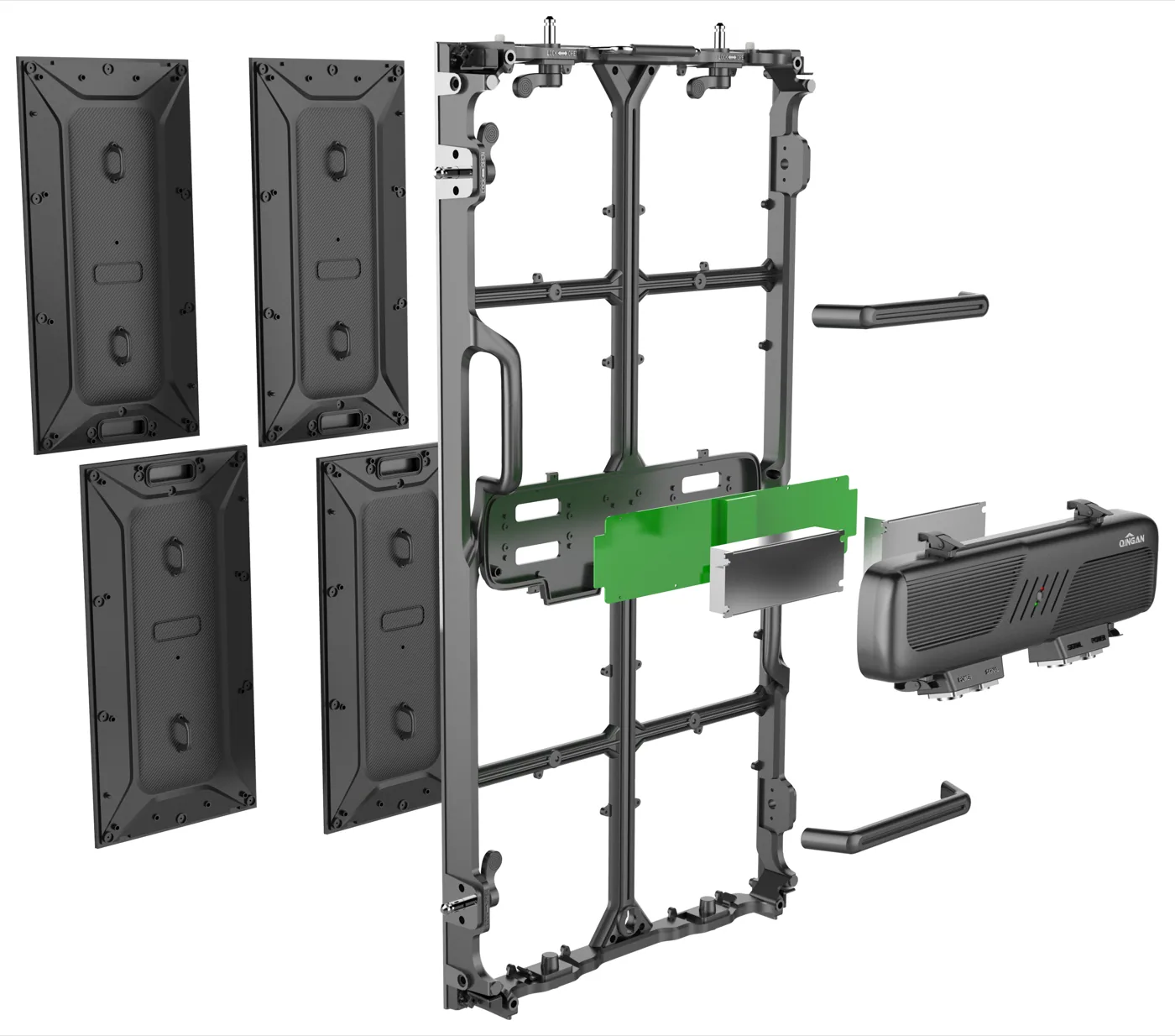

GOE JR Series rental LED cabinet exploded structure view
Cabinet structureComponent arrangement for product and maintenance discussions.
GOE JR Series rental LED display installation and cabinet setup
Installation viewCabinet assembly reference for rental project planning.
Approved model data

JR-HW-P3.91 outdoor configurations

500 × 500 cabinet500 × 500 × 76 mm · 7.4 kg ± 0.1 kg · 128 × 128
500 × 1000 cabinet500 × 1000 × 76 mm · 12.4 kg ± 0.1 kg · 128 × 256
Display dataP3.91 (3.90625 mm) · SMD1921 · 4300-5000 cd/m²
Refresh and density7680 Hz · 65,536 dots/m²
ProtectionFront IP65 / Rear IP54
Power800 W/m² max / 360 W/m² average
Electrical data4.5 V · 140° ± 10° viewing angle

Protection values apply to the normal installed orientation. Horizontal or flat placement has different protection conditions.

Approved model data

JR-SN-P2.976 indoor configurations

500 × 500 cabinet500 × 500 × 75 mm · 5.4 kg ± 0.1 kg · 168 × 168
500 × 1000 cabinet500 × 1000 × 75 mm · 10.5 kg ± 0.1 kg · 168 × 336
Display dataP2.976 · SMD2020 · 800-1200 cd/m²
Refresh and density7680 Hz · 112,896 dots/m²
Power600 W/m² max · 300 W/m² average · 4.5 V
Viewing and storage140° ± 10° · -20℃ to 45℃

Indoor configuration details are shown separately from the JR outdoor model data.

Approved model data

JR-SN-P3.91 indoor configurations

500 × 500 cabinet500 × 500 × 75 mm · 5.4 kg ± 0.1 kg · 128 × 128
500 × 1000 cabinet500 × 1000 × 75 mm · 10.5 kg ± 0.1 kg · 128 × 256
Display dataP3.91 (3.90625 mm) · SMD2020 · 800-1200 cd/m²
Refresh and density7680 Hz · 65,536 dots/m²
Power600 W/m² max · 300 W/m² average · 4.5 V
Viewing and storage140° ± 10° · -20℃ to 45℃

Indoor P3.91 configurations are shown separately from the JR outdoor and indoor P2.976 model data.

Professional rental use

Prepared for discussion with rental, staging and event-production teams.

Indoor and outdoor review

Working sources exist for both environments, subject to technical approval.

Visual product story

Approved product, structure and installation images support project review.

Application matching

Recommendations start with viewing, setup and operating conditions.

Human confirmation

Configurations and parameters remain controlled by the technical owner.

Draft only. These four JR Series images are approved; technical parameters remain subject to confirmation.
