E Series E500 Rental LED Display

E Series. A 500 × 500 mm rental LED display family for indoor and outdoor event applications.

Request E500 InformationRental LED Displays
E500 rental cabinet

One 500 × 500 mm format for indoor and outdoor projects

E Series remains an independent GOE product family. Its E500 technical values follow the approved equivalent NH500 configurations, while E Series naming and imagery remain separate. P2.604 availability is confirmed; detailed specifications will be added from the formal specification sheet.

GOE E Series E500 rental LED display cabinet
E Series E500 rental LED cabinet.
E500 product detail

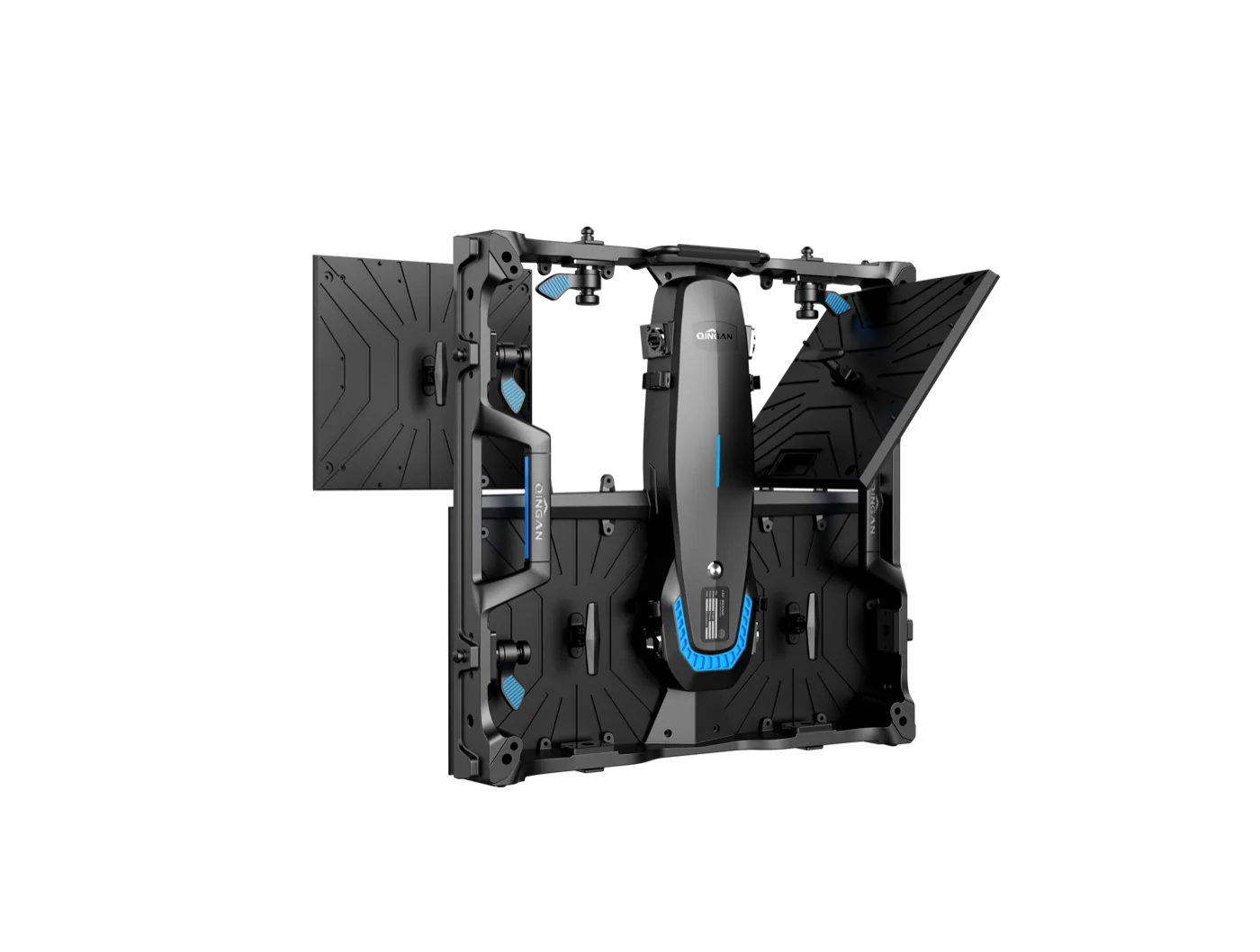

Cabinet structure and maintenance view

The approved detail image shows the E500 cabinet and module arrangement for project discussions.

GOE E Series E500 cabinet module and maintenance structure detail
E Series E500 structure and maintenance detail.
Approved E500 model data

Outdoor P2.976 configurations

White LED7.4 kg · 4300-4500 nits · 168 × 168
Black LED7.4 kg · 2500-3000 nits · 168 × 168
Display dataP2.976 · SMD1921 · 7680 Hz
Protection and powerIP65 · 650 W/m² max · 325 W/m² average

Cabinet: 500 × 500 mm. Pixel density: 112,896 pixels/m².

Approved E500 model data

Outdoor P3.91 configurations

White LED7.4 kg · 4300-4800 nits · 128 × 128
Black LED7.4 kg · 2500-3000 nits · 128 × 128
Display dataP3.91 · 76 mm depth · SMD1921 · 7680 Hz
Protection and powerFront IP65 / Rear IP54 · 800 W/m² max · 360 W/m² average

Cabinet: 500 × 500 × 76 mm. Pixel density: 65,536 pixels/m².

Approved E500 model data

Indoor P2.976 configuration

Cabinet500 × 500 × 76 mm · 7.1 kg · 168 × 168
Display dataP2.976 · SMD2020 · 800-1000 nits
Refresh and density7680 Hz · 112,896 pixels/m²
Protection and powerFront IP65 / Rear IP54 · 800 W/m² max · 360 W/m² average
Independent E Series identity

E Series naming and images remain separate from NH Series.

Indoor and outdoor options

P2.604, P2.976 and P3.91 options support project selection.

7680 Hz refresh rate

All displayed E500 configurations use the approved rate.

Project-led selection

Venue, brightness and operating conditions guide selection.

P2.604 availability is confirmed for E Series, but its detailed technical values remain pending the formal specification sheet. Existing P2.976 and P3.91 values must not be copied to P2.604.
