BF Series Rental Transparent LED Screen

BF Series. The GOE rental transparent LED screen family, separate from the E Series.

Discuss a Transparent LED ProjectTransparent LED Screens
Transparent rental positioning

Start with the space, viewing direction and rental workflow

BF Series is planned for transparent visual applications. The project brief must define the installation area, audience, content and repeated-use requirements.

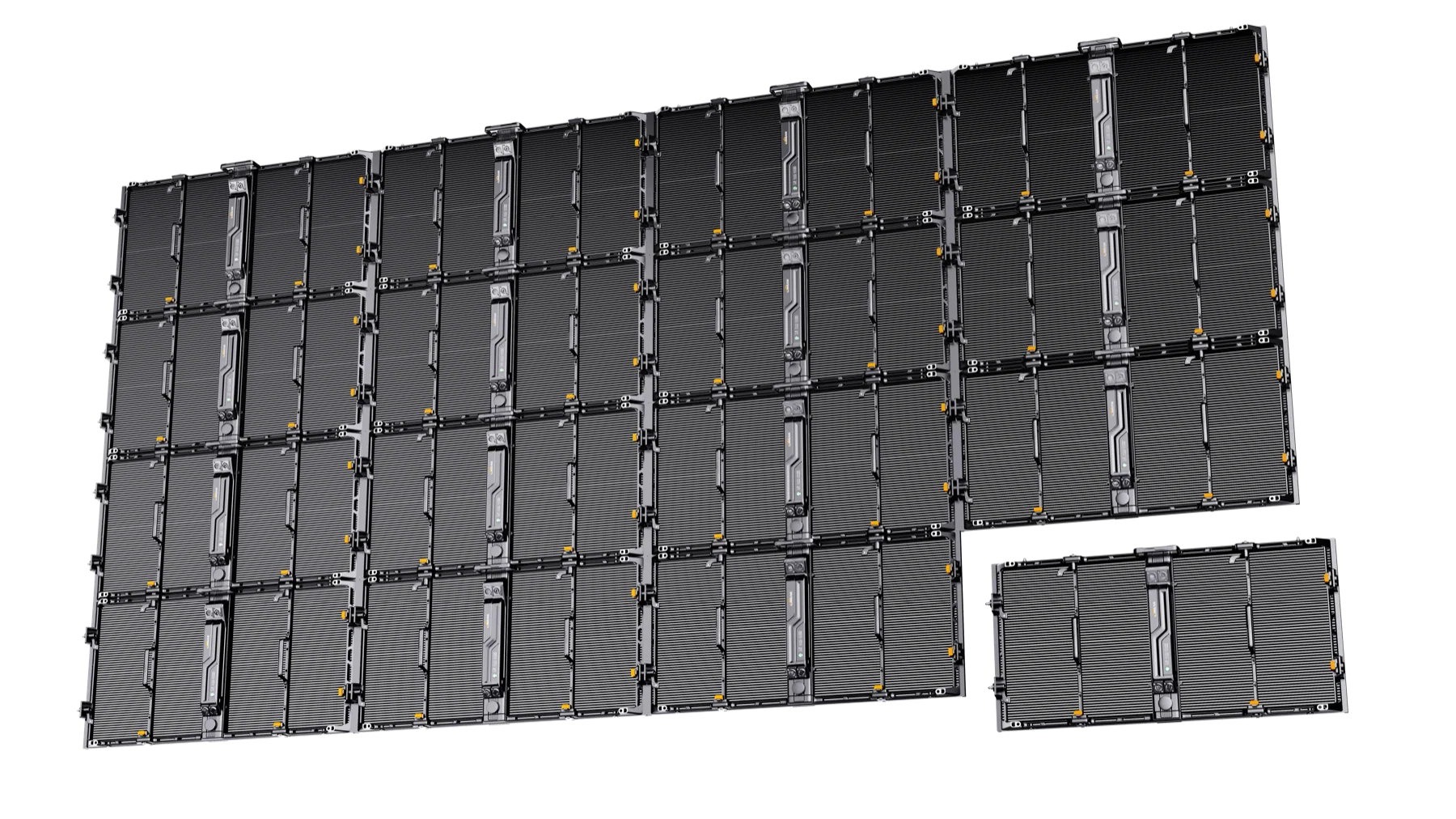

GOE BF Series rental transparent LED screen wall
BF Series rental transparent LED screen.
GOE BF Series transparent LED screen curved installation reference
Curved installation referenceA visual reference for discussing transparent LED screen configurations.
GOE BF Series transparent LED screen rear cabinet structure
Rear cabinet structureRear-view reference for product and installation discussions.
Approved model data

BF Series outdoor P3.91-7.81 configurations

1000 × 500 cabinet1000 × 500 × 89 mm · 8 ± 0.5 kg · 256 × 64
500 × 500 cabinet500 × 500 × 89 mm · 6 ± 0.5 kg · 128 × 64
Standard brightness3000-3500 cd/m² · 680 W/m² max · 270 W/m² average
High brightness4500-5000 cd/m² · 800 W/m² max · 320 W/m² average
Display dataP3.91-7.81 · SMD1415 · 32,768 pixels/m² · 7680 Hz
Protection and viewingIP65 · H/V 140° ± 10° · 14-16 bit
Curving-10° to 10° in 2.5° steps
Rigging capacityUp to 16 cabinets stacked or hanging
Operating conditions-20℃ to 40℃ · 10%-90% RH · ≥75,000 hours

Standard- and high-brightness configurations have different power requirements. Final project configuration is confirmed for the installation environment.

Dedicated product family

BF Series is a separate product family and must not use E Series naming or data.

Transparent applications

The page is structured around transparent visual project discussions.

Rental workflow

Setup, transport and operating requirements are part of the review.

Approved visual references

Wall, curved, product and rear-view images support project discussions.

Approved specifications

The displayed technical values follow the approved BF Series specification source.

Local review draft. The selected BF Series images and displayed technical specifications are approved for website use. Production publication remains subject to final launch approval.
